Adjustable Deck Support

$19.99$26.94

Description

Ici c’est quoi ?

Additional information

Couleurs

Black

Materials

Steel

Dimensions

33/66, 36, 44, 44C, 66

Reviews

There are no reviews yet.

Be the first to review “Adjustable Deck Support”

Your email address will not be published. Required fields are marked *

Adjustable Deck Support

Price per unit
0,00$

Read documentation

Technical Data Sheet

Installation Guide

Installation Video

Description

  • To be used with double joists
  • Installs in a concrete support block or in a concrete form tube
  • Load bearing capacity of 2 725 lbs
  • Adjustment range of approximately 3 in
  • Baked powder coating finish provides excellent rust resistance

BEFORE INSTALLING THIS PRODUCT: BE SURE TO COMPLY WITH ALL BUILDING CODES IN EFFECT IN YOUR AREA.

Features

  • Material Steel
  • Load capacity 2 725 lbw
  • Adjustment height 3 in
  • Color Black
  • Product reference xxx
FREQUENTLY ASKED QUESTIONS

DO YOU HAVE ANY QUESTIONS?

GO TO FAQS
Product

What is the purpose of this product?

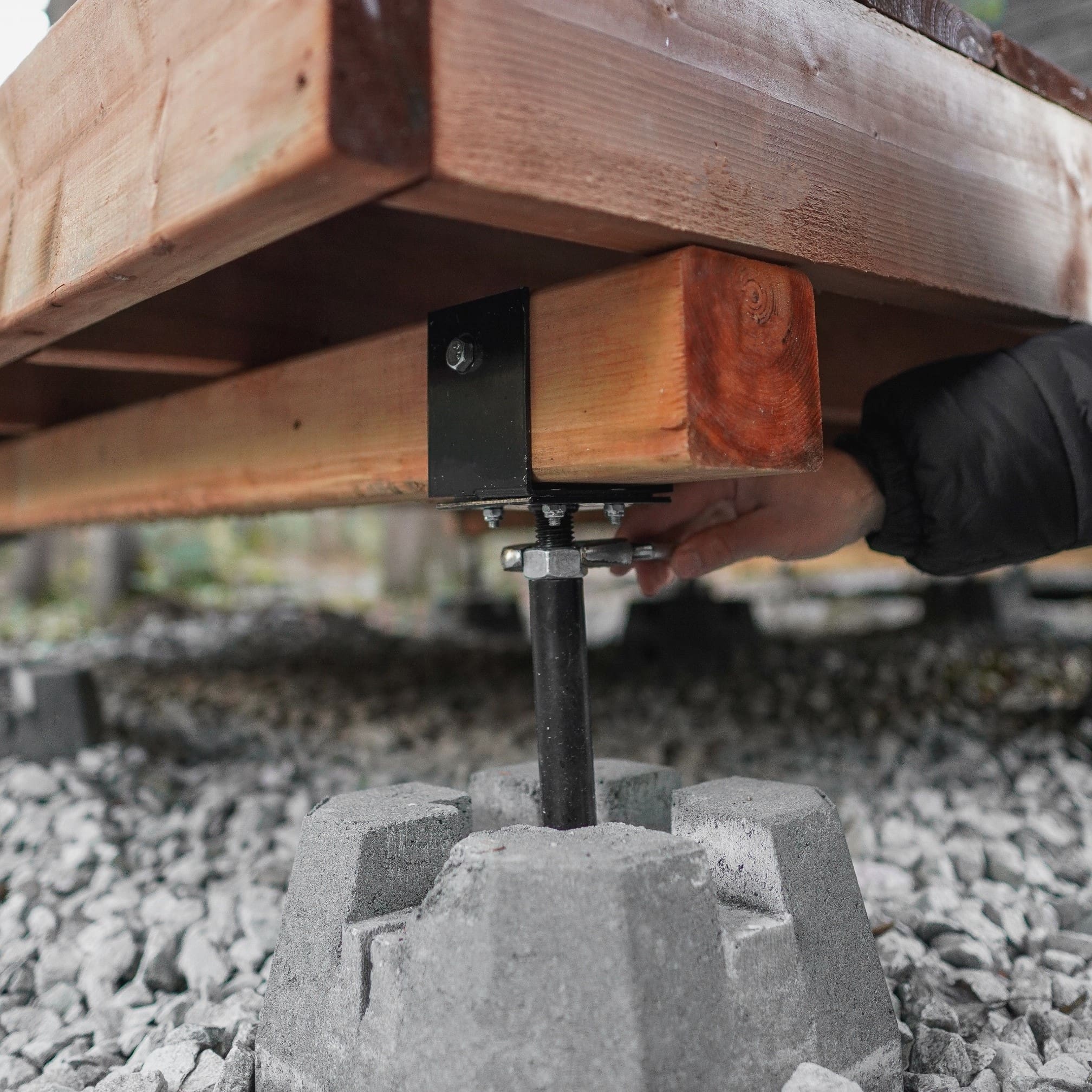

This product is designed to support your deck. It makes it easier to level your deck during construction and when the ground moves during freeze-thaw periods. This deck support has a screw to adjust the deck up to 3 in, in height.

Product

Can this support be fastened to the concrete patio bases (Deck-Block)?

No. The adjustable patio support is simply placed on the concrete blocks. Deck base concrete is not reinforced, which makes it very brittle. As a result, the concrete may crack if you try to anchor the support to your deck’s concrete bases.

Product

Can this product support a lateral load?

No. This deck support is designed to support a vertical load only.

Product

How is this product installed?

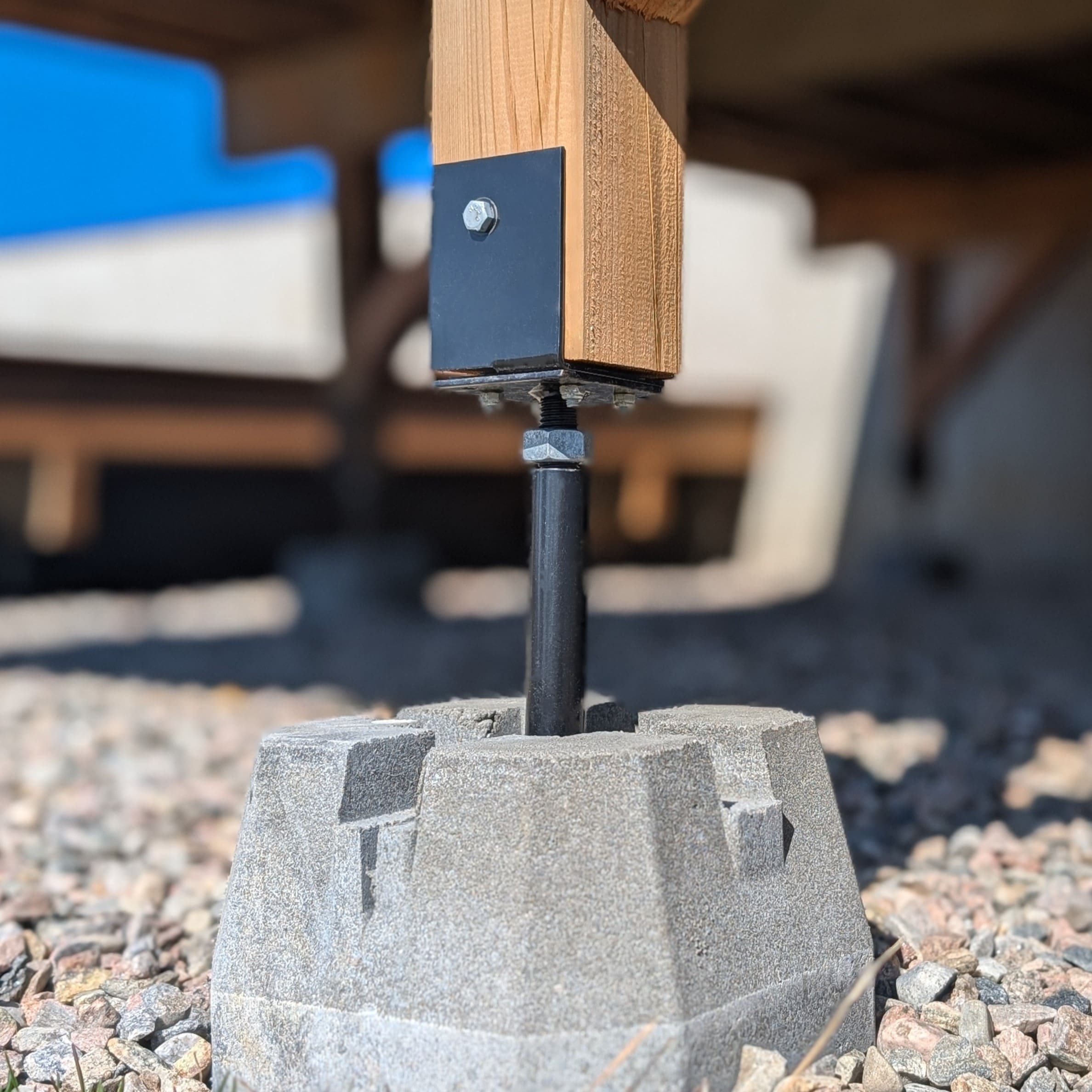

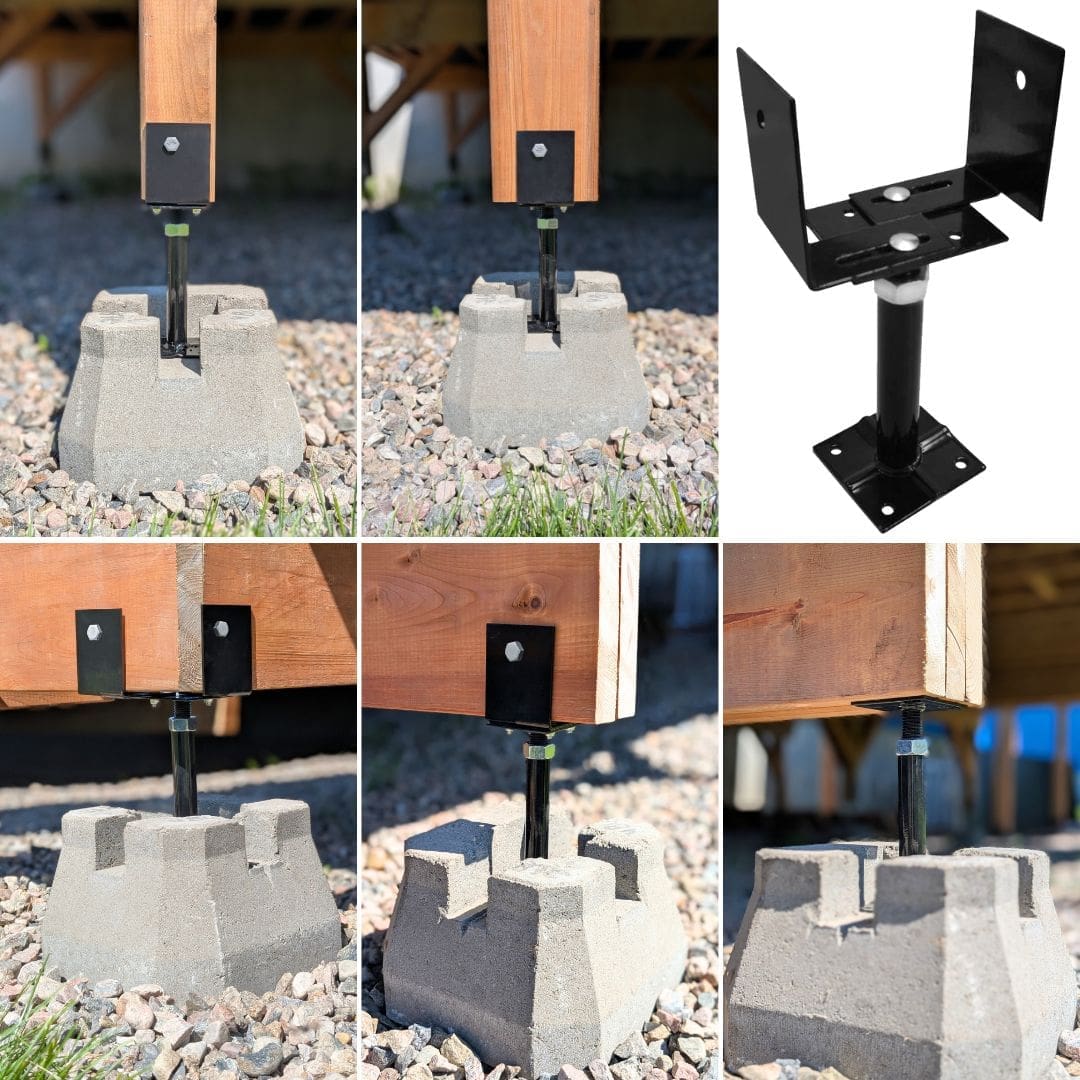

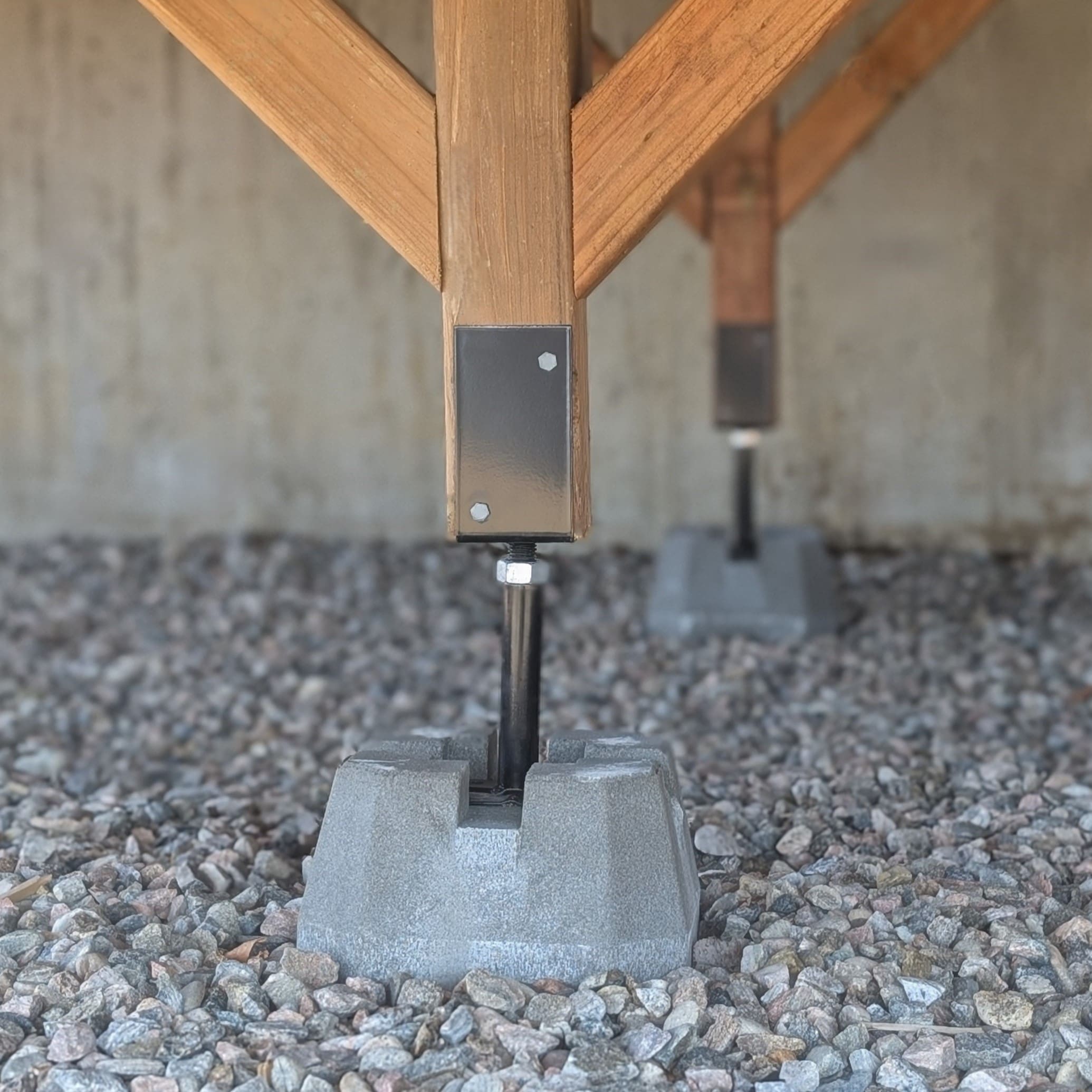

The support is installed directly on the concrete blocks. It can also be cast into a concrete column by inverting the base. Our installation video will guide you through the installation of this adjustable patio support.

Product

(12098) What is the purpose of this product?

This product is designed to support your deck. It makes it easier to level your deck during construction and when the ground moves during freeze-thaw periods. This deck support has a screw to adjust the deck up to in, in height. Its articulated head allows the platform to be adjusted to the desired dimension (from 3 to 7 inches). It can be attached to 4 in x 4 in and 6 in x 6 in posts, single and double beams, directly to the frame, etc. Several configurations are possible.
