Adjustable Pylex

$45.99 – $49.99

Materials

Dimensions

Clear

SKU: N/A Categories: All products, Deck, Gazebo & Pergola, Helical piles Tags: acier, ajustable, deck, fondation, galerie, noir, patio, pieu, pieux, pylex, soutien, support, terrasse, vis

Description

Ici c’est quoi ?

Additional information

Materials	Steel
Dimensions	32 inch, 50 inch

Reviews

There are no reviews yet.

Be the first to review “Adjustable Pylex”

Adjustable Pylex

Unit price

0,00$

0 reviews

Ce produit n'est actuellement pas disponible dans cette devise et ne peut pas être ajouté au panier

adjustable pylex, screwable deck post anchor - pylex ajustable, vis d'ancrage pour patio

Read documentation

Technical Data Sheet

PDF

Installation Guide

PDF

Installation Video

Video

Description

Load bearing capacity of 5 000 lbs in sandy soil and up to 3 500 lbs in clay soil
Gound depth of 42”, below frost line

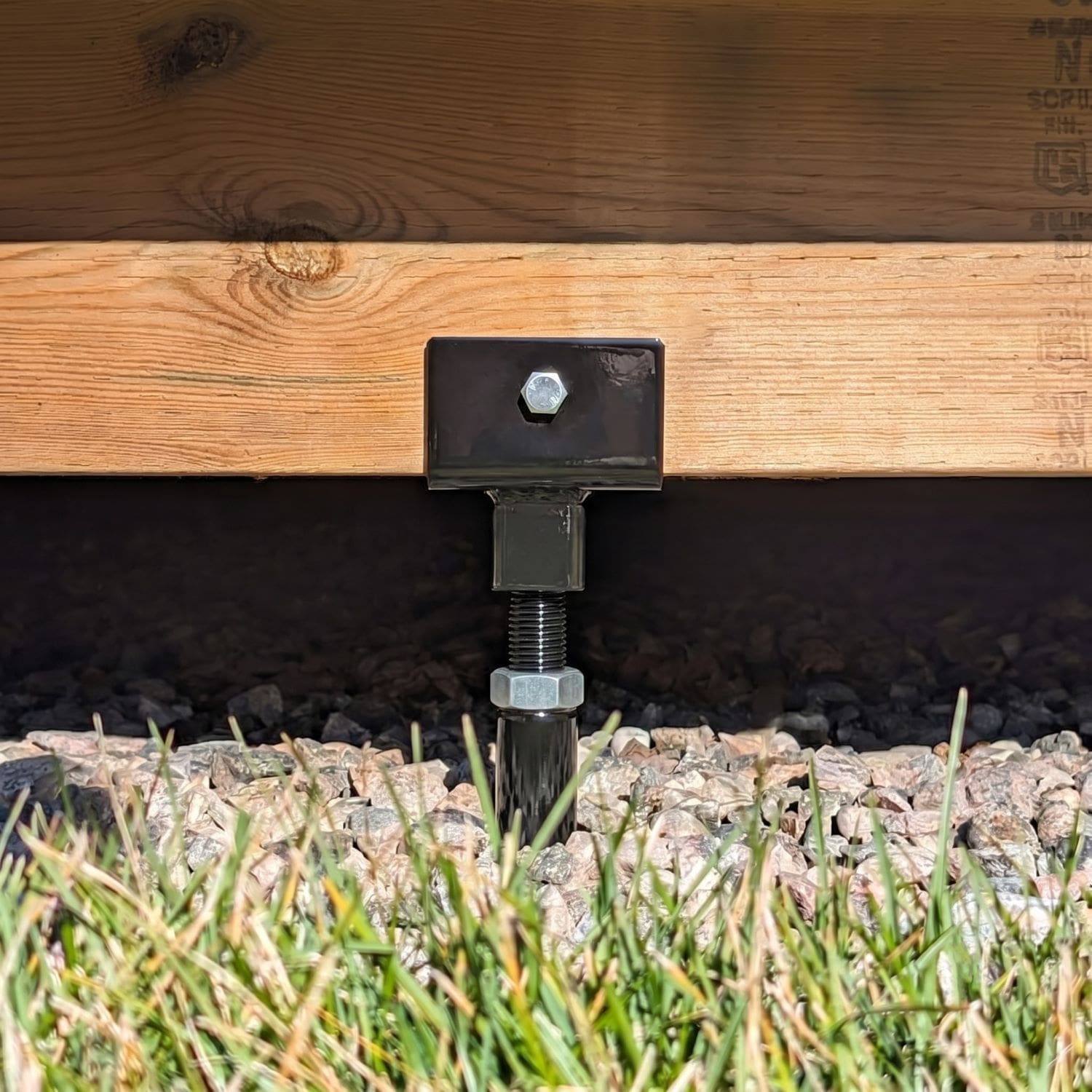

Saddle height adjustment range of approximately 3”
Can be extended with a 24” extension (product # 10571)
Baked powder coating finish provides excellent rust resistance.

Load bearing capacity of 5 000 lbs in sandy soil and up to 3 500 lbs in clay soil
Gound depth of 42”, below frost line
Saddle height adjustment range of approximately 3”
Can be extended with a 24” extension (product # 10571)
Baked powder coating finish provides excellent rust resistance.

BEFORE INSTALLING THIS PRODUCT: BE SURE TO COMPLY WITH ALL BUILDING CODES IN EFFECT IN YOUR AREA

Features

Material Steel
Available heights 32 in and 50 in
Tube diameter 1-¼ in
Diameter of helical disc 6 in
Color Black
Product reference xxx

DO YOU HAVE ANY QUESTIONS?

VIEW FAQS

Product

What is the load-bearing capacity of this product?

5,000 lb in sandy soil 3,500 lb in clay soil

Product

How is this product installed?

The ideal way to install the Pylex 50" is to use an 8-foot-long 2x4 as a lever. If the soil is not well compacted to a depth of 4 feet, it is important to add a 24" extension (Product # 10571) . Our installation video will teach you how to properly compact the soil. Please contact us for more information on how to install this product.

Product

What is the purpose of this product?

This product is ideal for supporting a patio, shed or gazebo without digging or pouring concrete. *DO NOT USE THIS PRODUCT FOR FENCING.

Product

How much space is required between each pile?

One pile every 8 feet for a balcony. One pile every 4 feet for load-bearing walls where there is a roof.

Product

Why use this product?

Pylex 50" adapts to all types of terrain and resists ground movement (freezing, thawing). It is also possible to adjust the height of the head by 3 inches to facilitate levelling.

Product

How can I prevent the Pylex 50" from moving sideways in the ground?

By adding a Pylex Stabilizer. (Product # 10575)

Product

Is it possible to use this product with a 6 in x 6in?

Yes, the Pylex 50" can be used with a 6x6 by combining it with the head of the Adjustable Patio Support 66 (12097) or the head of the Adjustable Extendable Patio Support 33-66 (12098).
